Breaking up planes & drawing attention to important elements

Postby Zombie Dave McCaig » Sat Feb 21, 2009 10:12 pm

Note: I have this topic ghosted in the Public Gallery right now, but for future reference, its permanent home is a sticky in Tips And Tricks.

One of the most common problems I’m seeing beginner colorists struggle with on the board these days is how to add depth and focus to a page or panel, and draw the eye to important elements.

This is my attempt at starting a series that I can refer back to during crits, to try and illustrate points. I’ll very likely edit phrasing and add tips from time to time, so be sure to check back in a few weeks, as things will probably be ironed out a little.



Part 1: breaking up Planes.

Illustration A is a screen grab of James Mason in “Bigger Than Life.” This movie is FANTASTIC reference. Shot after awesome shot. Great moody shadows, etc. Only available as a region 2 DVD for some reason though.

The director (Nicholas Ray) and cinematographer (Joseph MacDonald) have done a great job of leading the eye around for the most part, although the dude below Barbara Rush gets lost in the shot.

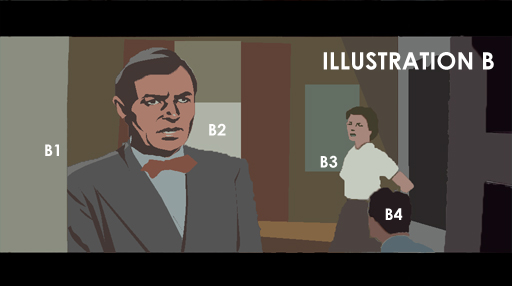

Illustration B shows where my eye is tracking while I look at the frame. B1 is a large flat area of high contrast, next to the biggest shapes on screen, and is on the left hand side (as we’re trained to read) so my eye *might* go there first. B1, B2 and Mason’s shirt create a pattern, so I’m drawn to the bow tie at the center of that pattern, and then up to his face. There are more reasons we look to his face, but I'll cover that in another section when I can get to it.

B3 is the highest point of contrast in the image, and is likely the first place most people will look.

B4 gets pretty lost here. The seated guy’s position is kind of awkward, but he’s not likely very important to the scene, so that can be a good thing. You would not want to go out of your way to draw attention to this guy if he was not relevant to what is going on. You just need to know he’s there if you look for him, to maintain continuity from scene to scene.

Basically, while this works great as a movie frame, if this was a colored comic panel the existing color choices would not be great. All the colors have similar values, contrast, and hue. Mason’s suit ties into both the wall and the actress’ skirt. The seated man is essentially invisible, and his flesh tone makes it easy to mistake his face for Barbara Rush’s hand. The whole image looks very flat, and it’s hard to tell that the wall at B1 is not on the same plane as B2.

The easiest way to deal with all of these problems as an illustration or comic panel is to break up all the planes distinctly.

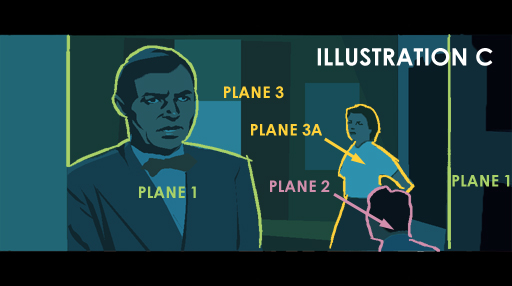

In Illustration C, I’ve indicated how I’d separate the important elements and depth of field. Plane 1 is extreme FG, Plane 2 is the seated guy, and Plane 3 the BG. Plane 3A is distinguished because even though it’s in the BG, that character has to pop forward a bit and have higher contrast.

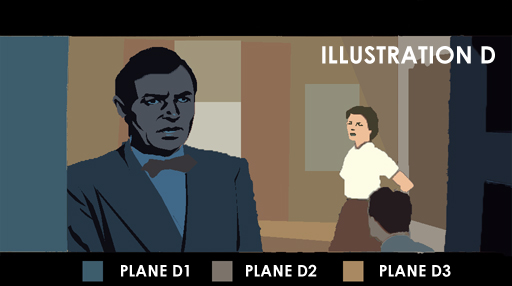

In Illustration D, I’ve used dark blues for Plane D1, earth tones for Plane D3, and a midway blend for plane D2. There are lots of ways to pop D2 if you need to, but we actually want that seated guy to be unnoticed.It's essential that he have his own plane though, because If he were part of plane D3, he’d tie into the woman, and if he was part of D1’s scheme, it would look like James Mason was talking to a midget. Note that I kept the high contrast shirt on the woman in the BG, but made her pop more by making her skin tone more saturated than the background.

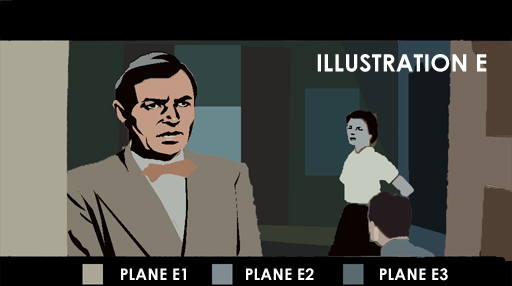

In Illustration E, I reversed the color combos, just so you could see that there are many ways to tackle the same problem, depending on who’s more important, the mood, the environment, etc. Emphasis is a little more focused on Barbara Rush in illustration D, and on Mason in Illustration E. Overall, focus is going to be more towards Rush no matter what due to the layout of the shot.
Prepare the mental-bleach solution of two parts whiskey to two parts whisky.
User avatar
Zombie Dave McCaig
Clownshoes
Clownshoes

Posts: 12061
Joined: Sat Mar 29, 2003 1:29 pm
Location: Vancouver, Canada

Re: Breaking up planes & drawing attention to important elements

Postby fearlessfosdick » Sat Feb 21, 2009 11:28 pm

I'm glad you posted this. Are you planning to post excerpts from that Disney book? Or do similar examples?
User avatar
fearlessfosdick
Überzombie

Posts: 398
Joined: Tue Jan 17, 2006 9:52 pm

Re: Breaking up planes & drawing attention to important elements

Postby JohnFebonio » Sat Feb 21, 2009 11:42 pm

There are so many artists in this field who would rather others remain ignorant, so that it may possibly benefit themselves in the offset. You Dave, and others here, actually have a drive to help and educate other beginners. It's quite amazing to me, and I can't thank you and the other pros on here enough for the generosity you show us who have come here for help and growth. :cheers:
User avatar
JohnFebonio
Überzombie

Posts: 386
Joined: Wed Dec 31, 2008 5:29 pm
Location: Massachusetts

Re: Breaking up planes & drawing attention to important elements

Postby Zombie Dave McCaig » Sun Feb 22, 2009 12:24 am

fearlessfosdick wrote:I'm glad you posted this. Are you planning to post excerpts from that Disney book? Or do similar examples?


I'm going to do a section with my own examples because I want to try to work in some extra stuff.

JohnFebonio wrote:thank you and the other pros


Hey, it's a pleasure. The more people share knowledge, the better art becomes for everyone. :rawk:
Prepare the mental-bleach solution of two parts whiskey to two parts whisky.
User avatar
Zombie Dave McCaig
Clownshoes
Clownshoes

Posts: 12061
Joined: Sat Mar 29, 2003 1:29 pm
Location: Vancouver, Canada

Re: Breaking up planes & drawing attention to important elements

Postby ikedog34 » Sun Feb 22, 2009 1:16 am

I've definitely had this problem and I'm sure the other newbies have, also. Way to identify the problem. This is a huge help.
User avatar
ikedog34
Zombie

Posts: 59
Joined: Mon Jan 19, 2009 3:10 pm

Re: Breaking up planes & drawing attention to important elements

Postby Eagle » Sun Feb 22, 2009 3:40 am

Thanks, Dave.
User avatar
Eagle
Überzombie

Posts: 6078
Joined: Wed Feb 07, 2007 1:54 pm
Location: French-Québecois

Re: Breaking up planes & drawing attention to important elements

Postby SebVector » Sun Feb 22, 2009 6:17 am

Cool! Nice info.
User avatar
SebVector
Zombie

Posts: 94
Joined: Mon Nov 26, 2007 12:01 pm

Re: Breaking up planes & drawing attention to important elements

Postby Jemm » Sun Feb 22, 2009 8:39 am

Ooo amazing mini-tut, thank you Dave! :<3: it really puts straight into words things I am trying to figure out by trial and error, so this is a great help. Thanks. :)
Jasen Smith wrote:
johnercek wrote:maybe it's just me- but I feel like I'm looking at Mr. T and not wolverine.. :-p


I pity the fool, bub?
User avatar
Jemm
GIRL!

Posts: 1143
Joined: Wed Aug 27, 2008 10:43 am
Location: Trinidad and Tobago, West Indies

Re: Breaking up planes & drawing attention to important elements

Postby simpson » Sun Feb 22, 2009 4:43 pm

I dig it. It reminds me of when I was learning how to paint in grayscale and using old b&w cinema stills as reference. You basically have to train yourself to recognize what your mind is reading since the mind uses visual shortcuts all the time. This mini-tute is fantastic.
User avatar
simpson
Fresh Meat

Posts: 26
Joined: Fri Jan 30, 2009 12:23 pm

Re: Breaking up planes & drawing attention to important elements

Postby Julius » Wed Feb 25, 2009 1:35 pm

Thank you so much for this post!
User avatar
Julius
Fresh Meat

Posts: 7
Joined: Tue Feb 17, 2009 6:51 am
Location: São Paulo/Brazil

Re: Breaking up planes & drawing attention to important elements

Postby odysseyroc » Thu Feb 26, 2009 2:22 pm

this is an awesome thread
User avatar
odysseyroc
Überzombie

Posts: 681
Joined: Mon Mar 31, 2003 11:50 am

Re: Breaking up planes & drawing attention to important elements

Postby MBirkhofer » Sat Feb 28, 2009 1:25 pm

How did I miss this?

Very cool Dave.

This is exactly something I've been trying to spend alot more time focusing on and getting better at recently.
User avatar
MBirkhofer
Überzombie

Posts: 2114
Joined: Sat Mar 29, 2003 4:52 pm
Location: Connecticut, USA

Re: Breaking up planes & drawing attention to important elements

Postby Endresen Evans » Tue May 12, 2009 10:42 am

Thanks!
User avatar
Endresen Evans
Fresh Meat

Posts: 14
Joined: Sun Jun 15, 2008 3:47 am

Re: Breaking up planes & drawing attention to important elements

Postby ART! » Wed May 27, 2009 8:57 am

Nice breakdown, Dave. It's interesting because there are so many ways to separate planes - hue, warmth, saturation, brightness, holds, and probably other things.
Life shrinks or expands in proportion to one's courage.
ArtLyonArt.com
User avatar
ART!
Exclamation mark!!

Posts: 396
Joined: Tue Mar 30, 2004 11:47 am
Location: Bloomington, IN

Re: Breaking up planes & drawing attention to important elements

Postby Hector R L » Thu Jun 25, 2009 7:15 pm

Really Nice!
May i use this post at my comunity of coloring (colorista de hq) (Translating to portuguese)?
keep the credits, sure!
User avatar
Hector R L
Fresh Meat

Posts: 37
Joined: Thu May 28, 2009 1:56 pm
Location: SP
